1.5mm 2.5mm 4mm 6mm 10mm LSZH XLPE Insulated Electric Wires and Cables for Performance

Name: 15mm 25mm 4mm 6mm 10mm LSZH XLPE Insulated Electric Wires and Cables for Performance
Brand: ZHUFENG
Price: 0.13 USD

Buy cheap 1.5mm 2.5mm 4mm 6mm 10mm LSZH XLPE Insulated Electric Wires and Cables for Performance product

Place of Origin : Hebei, China

Brand Name : ZHUFENG

Model Number : WDZ-BYJ

Type : insulated

Application : Underground

Conductor Material : Copper

Conductor Type : Solid

Insulation Material : XLPE

Rated voltage : 450/750V

product name : Xlpe insulated electrical wire

application : fixed wiring

core number : single

standard : Q/301223KLA55-2015

temperature : 90°C

certificate : ISO, CCC, CE, RoHS

Packaging Details : Packed in wooden case on pallet or as requirement.

Supply Ability : 30000 Kilometer/Kilometers per Month

MOQ : 1000 meters

Price : $0.13 - $0.36/meters

Contact Now

Product Description

1.5mm 2.5mm 4mm 6mm 10mm LSZH XLPE Insulated Electric Wires and Cables for Performance

WDZ-BYJ cable wire characteristics

WDZ-BYJ wire uses a new generation of flame retardant crosslinked low smoke halogen-free polyolefin insulation, has a very good flame retardant, low smoke, low toxic performance, to overcome the traditional halogen-free polymer combustion produced a lot of smoke to suffocate people and corrosion of equipment defects, represents the development trend of today's wire and cable.

LSZH ( Low smoke halogen-free ) flame retardant wire's performance is mainly manifested in if the fire occurs, the spread speed is slow, the toxic smoke concentration is low, the visual field visibility is high, the harmful gas release amount is small, easy to evacuate the disaster site personnel.

LSZH cable combustion gas corrosion is very small, so as to avoid damage to equipment. Low smoke halogen-free wire has a strong and improved uv resistance and aging, thus extending the service life of the cable.

LSZH cable in combustion: halogen acid gas release ≤100mg/g,z light transmittance is 60%;

LSZH cable when burning: PH value ≥4.3, conductivity ≤10μS/mm, z light transmittance 60%.

What's the difference between BV and BYJ?

BV wire is PVC insulated, BYJ wire is xLPE insulated. BYJ -- Copper conductor XLPE insulated fixed laying wire, temperature class 90℃; BV -- Copper conductor for fixed laying with PVC insulation, temperature class 70℃.

Specification

Product name	Copper conductor Xlpe insulated electrical wire	Insulation	XIPE
Model	BYJ	Temperature	90°C
Rated voltage	450/750V	Standard	Q/301223KLA55-2015
Specification	1.5/2.5/4/6mm²	Application	Suitable for rated voltage 450/750V and below, halogen-free, low smoke, flame retardant, safety and environmental protection requirements of the place.
Core number	single core	Conductor	high quality Oxygen-free copper

Pure Oxygen-Free Copper Conductor to Ensure Conductivity.

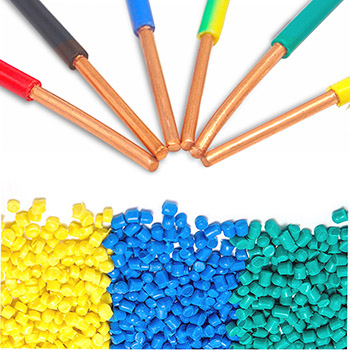

Environmentally-Friendly XLPE Material with Excellent Insulation Performance, Scratch Resistance, Abrasion Resistance, Great Toughness.

Other productions

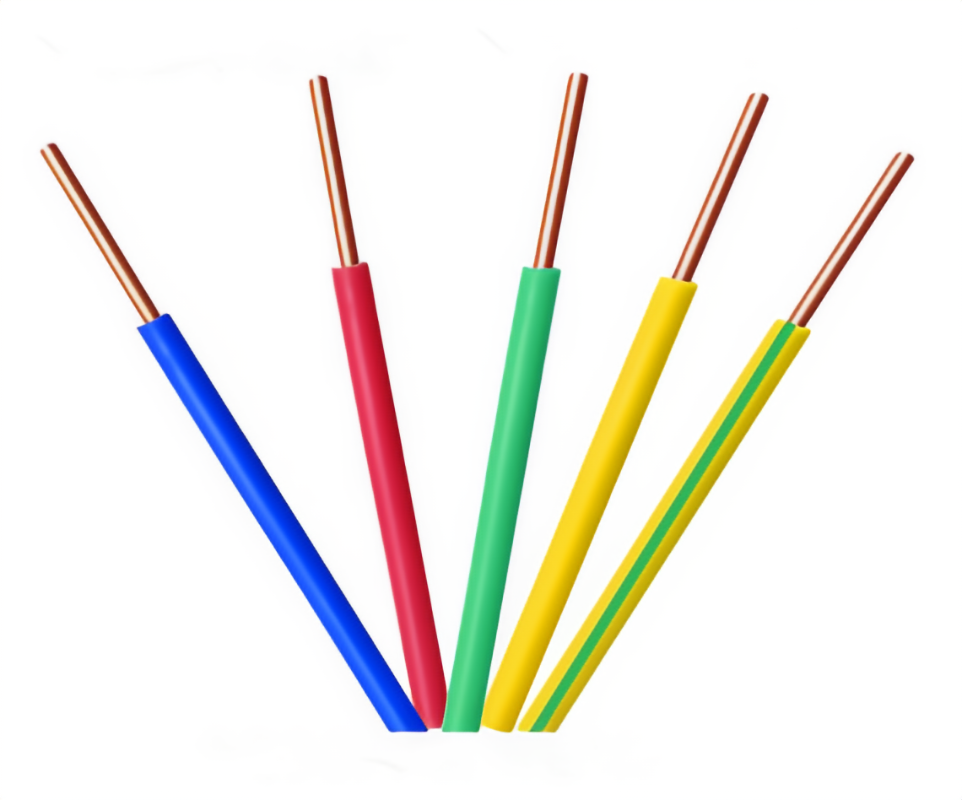

1.5mm 2.5mm 4mm 6mm 10mm LSZH XLPE Insulated Electric Wires and Cables for Performance Images
